Post and lintel construction has served as the backbone of traditional Chinese architecture for over two millennia. This fundamental building method—simple in concept yet powerful in form—created the foundation for the iconic wooden structures seen across China, from grand imperial palaces to humble courtyard homes. Known for its flexibility, harmony with nature, and seismic resistance, the post and lintel system not only defines the physical structure but also reflects the cultural values embedded in Chinese architectural philosophy.
The Basics of Post and Lintel Construction
What is Post and Lintel Construction?
Post and lintel construction is an architectural system where vertical posts (columns) support horizontal lintels (beams) to form a structural frame. In the context of Chinese traditional architecture, these components are primarily made of wood and connected without nails, relying on precisely cut joints—especially mortise and tenon joints—for stability.
Unlike masonry arches used in Western classical architecture, Chinese architecture emphasizes straight lines and horizontal expansion. This makes the post and lintel system ideal for constructing the broad eaves and overhanging roofs characteristic of Chinese buildings.
Why It Matters in Chinese Roof Structures
The roof is the visual and symbolic highlight of any Chinese building. To support complex roof structures like the Wu Dian roof or Xie Shan roof, a strong yet adaptable frame is needed—this is where the Chinese roof truss, built upon the post and lintel system, comes into play.
The Structure of Chinese Roof Trusses

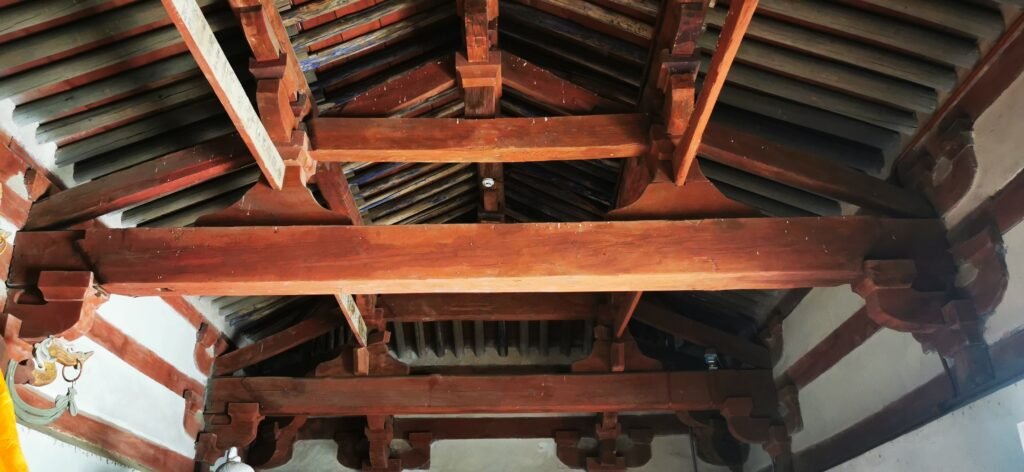

Anatomy of a Chinese Roof Truss
A Chinese roof truss is an integrated framework that connects columns, beams, and purlins to distribute the weight of the roof efficiently. This system typically consists of:
- Columns (Zhu 柱): Vertical posts supporting the main frame.
- Tie Beams (Fang 方): Horizontal beams linking columns at the top.
- Purlins (Chuan 椽): Longitudinal beams placed under the roof tiles.

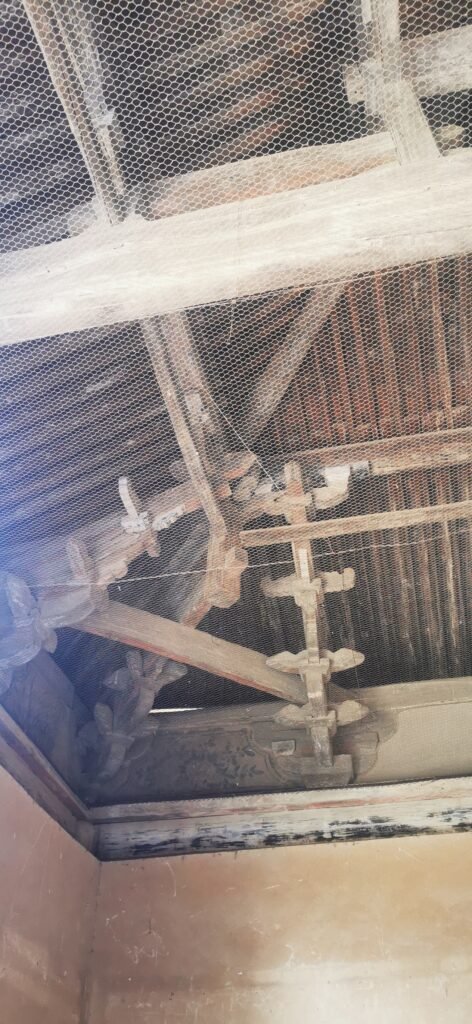

- Struts and Brackets (Dougong 斗拱): Intermediary elements supporting the overhanging eaves.
This layered framework allows the roof’s massive weight to be transferred downward through the posts, ensuring a balanced and earthquake-resistant structure.
Evolution Across Dynasties
The Chinese roof truss evolved significantly from the Han dynasty through to the Qing dynasty. Early forms were simpler and heavily reliant on the post and lintel structure alone. As time progressed, more sophisticated components like dougong brackets were introduced, further enhancing the roof’s load-bearing capacity and decorative expression.
Roof Types Supported by Post and Lintel Construction
Wu Dian Roof
The Wu Dian roof, or five-ridge roof, represents the most prestigious type of roof used in imperial palaces and temples. This design features a central ridge and four sloping ridges, creating a pyramid-like form. The heavy and elaborate roof is made possible by the layered post and lintel framework that supports it from below.
Xie Shan Roof
Another significant style is the Xie Shan roof, also known as the hipped-and-gabled roof. Unlike the Wu Dian, the Xie Shan includes both ridged and sloped surfaces and is commonly used for official buildings. The complexity of its curves and its height require a precisely calibrated Chinese roof truss beneath, once again highlighting the importance of post and lintel construction.
Advantages of the Post and Lintel System
Earthquake Resistance
One of the most remarkable features of traditional Chinese architecture is its resilience against seismic activity. The flexible wooden frame of the post and lintel system allows the building to sway with ground movement, rather than collapse. This principle has helped preserve ancient wooden temples and palaces for centuries.
Modularity and Flexibility
Chinese post and lintel construction follows a modular design based on the “jian” (间) unit—essentially a bay or space between two posts. This modularity allows for easy expansion or modification of buildings without compromising structural integrity.
Aesthetic and Symbolic Value
The visible alignment of beams and columns, along with the exposed structure of the roof truss, becomes part of the building’s aesthetic. In Confucian culture, this honesty in structure is symbolic of moral uprightness and clarity, aligning architecture with philosophy.
Applications Beyond the Palace
While we often associate traditional Chinese construction with grand structures like the Forbidden City, the post and lintel method was widely applied across the country. From the Siheyuan courtyard homes in Beijing to wooden temples in Shanxi and Anhui, the same principles govern form and function.
The Role of Joinery in Post and Lintel Systems
A hallmark of Chinese post and lintel construction is the mortise and tenon joint, a sophisticated wood joinery technique that ensures stability without nails or glue. These joints allow for minor movement, crucial for a system that relies on balance rather than rigid fixation.
Conclusion: The Timeless Value of Post and Lintel Construction
The post and lintel construction system remains a defining characteristic of Chinese architecture, from its ancient temples to its vernacular homes. At the heart of this method lies the principle of harmony—between human activity, architectural form, and the natural world. The Chinese roof truss built upon this method is not just an engineering feat but also a cultural expression that continues to inspire architects and historians today.
Whether supporting the imperial Wu Dian roof, the elegant Xie Shan roof, or a humble family dwelling, post and lintel construction stands as a testament to the ingenuity and spiritual depth of traditional Chinese building practices.
